Components

We know that software alone cannot solve the automation-related challenges in surface treatment and quality inspection. Therefore we developed a variety of components to support and enhance Nordbo software platforms.

These components are designed with the end user in mind: the functionalities and materials are defined by the requirements of different application processes.

Tool Changer

The NTC-E10 is a precise magnetic tool changer with an optional I/O coupling module. The patented design uses electromagnetism which discards the need for pneumatic equipment.

Learn More

Active Compensation unit

Robots equipped with NAC can reliably measure the force of tool applied on any working surface, achieving consistent contact force without any adaptations of robot paths.

Learn More

Force Torque Sensor

Need higher precision and accuracy? Combined with our software a force torque sensor brings application reliability to the next level!

Learn More

Flexible Spindle Mount

Protect your spindles from high contact forces with a flexible spindle mount.

Learn More

3D Camera

The 3D camera is an industrial graded camera for your robot applications.

Learn More

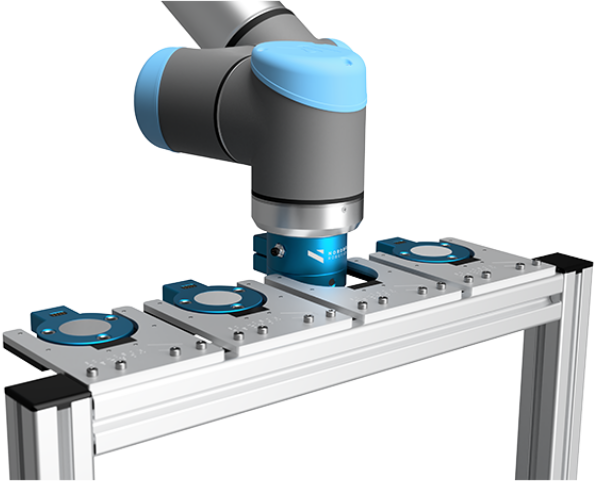

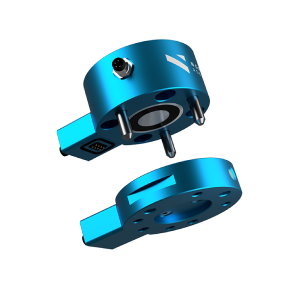

NTC-E10, Tool changer

Tool Changer

Increase your cobot’s flexibility, efficiency, and productivity with a magnetic tool changer!

The NTC-E10 is a precise magnetic tool changer with an optional I/O coupling module. The patented design uses electromagnetism which discards the need for pneumatic equipment.

  • Green Check Icon
    Improved ROI

Change tool automatically and reduce changeover time between operations, enabling one robot to perform multiple tasks and improving the ROI.

  • Green Check Icon
    Quick installation

Mount the tool changer on the robot, setup the robot 24Vdc output for tool-release, teach the tool positions and you are good to go.

  • Green Check Icon
    No air required

No need for regulators, valves, and tubes. Simply connect both tool changer and tool directly to the tool flange I/O.

NTC-E10, Tool changer

Manual

A manual tool changer however needs an operator to change the tools while the robot is stopped – a process that is more time consuming and interrupts its operation.

Automatic

An automatic tool changer allows users to program the robot to automatically change tools without human interference.

Minimize idle time

An automatic tool changer enables maximum utilization of robots by quickly switching between multiple tools. Thereby, companies can program one robot to perform multiple tasks, improving the return of investment. It further minimizes idle time by allowing a seamless transition between different tools in operation.

I/O Connector available

The NTC-E10 can be further supplied with I/O connectors which enables tool-changing between electrical grippers and tools

  • Green Check Icon
    High positional repeatability
  • Green Check Icon
    Plug & Play
  • Green Check Icon
    Cobot Interface: ISO 9409-1-50-4-M6
  • Green Check Icon
    Always-ON Safety
  • Green Check Icon
    URCap Included

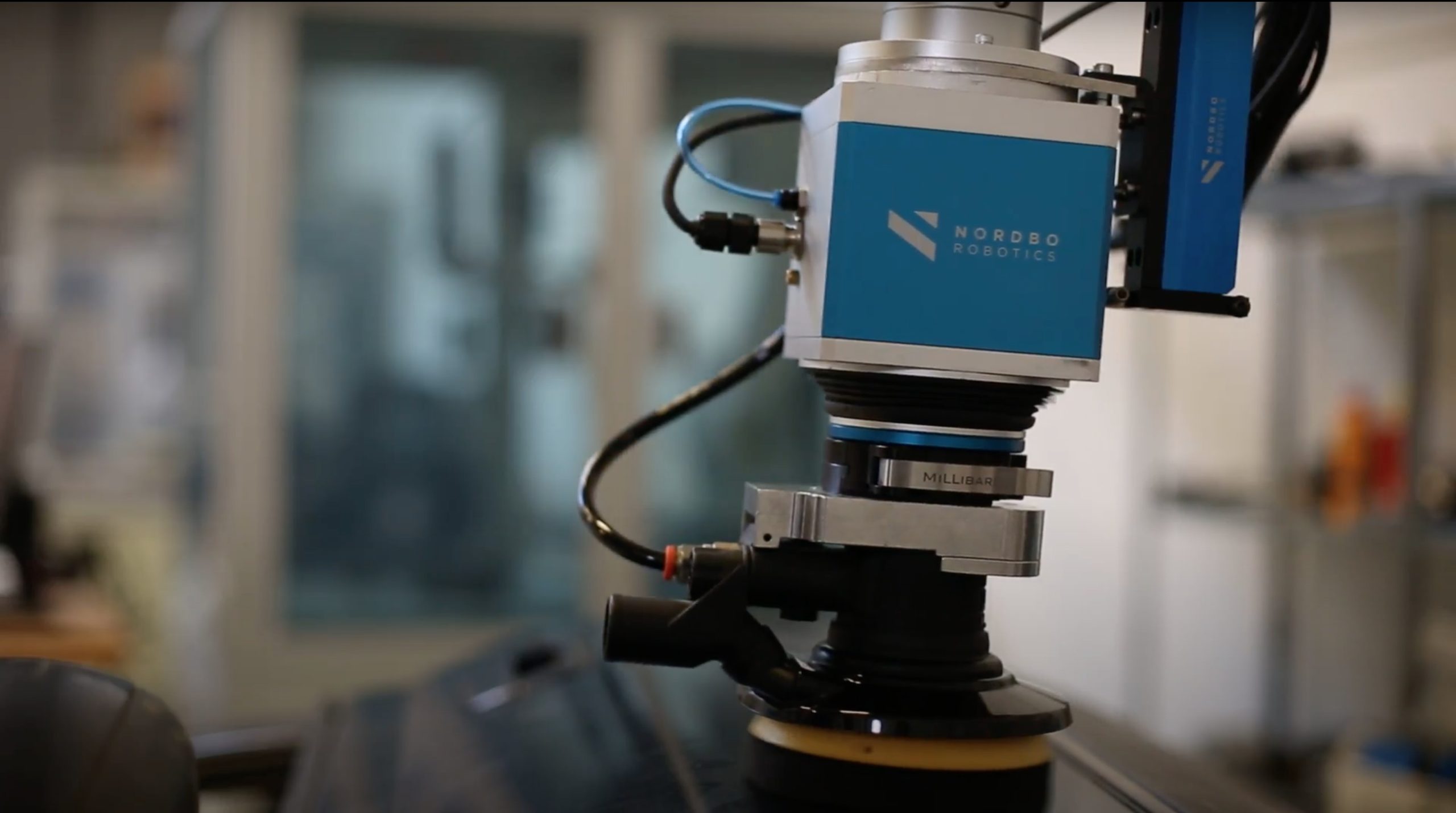

NAC, Active compensation unit

NAC

The Nordbo Active Compensation unit (NAC) assures a constant applied force, regardless of the complexity of the surface curvature, processing speed and orientation of the tool. Sensors inside the product register the contact with the workpiece, keep the applied force constant and enable a soft landing to ensure that the part is not being over-processed while in first contact with the processing tool. The NAC can be used either as an end-of-arm tool on a robot or as a standalone component.

  • Green Check Icon
    Consistent quality output

The pressure on the tool flange is actively kept constant on the configured force which results in an consistent and high quality output.

  • Green Check Icon
    Increased productivity

Fast changes in curvature are compensated by the stroke of the NAC which enables an higher processing speed and results in an increased overall productivity of your processing application.

  • Green Check Icon
    Easy configuration

Pressure and other settings are configurable through the integrated webserver which is accessible over ethernet using your laptop or phone.

Consistent force control

No matter of complexity of the surface curvature, this technology is able to automate both operations sensitive to contact, and applications with various tolerance levels, in a simple, reliable and economical manner, in turn offering our clients a powerful tool to increase competitiveness on the market.

One robot, multiple tasks

The NAC is designed for both as an end-of-arm mount on a robot or as a standalone component. The rectangular shape offers easy and stable installation possibilities. The compact design makes NAC the lightest compensation unit on the market with a total weight of only 2.6 kg.

Application examples

Large surface sanding (car repair and finishing)

Weld seam removal

NRS-6, FT-sensor

Force Torque Sensor

The Nordbo Robotics 6-axis force torque sensors are rigid, robust and ideal for reliable and repeatable force torque acquisition and control.The sensors’ minimal deformation when being exposed to external forces makes the NRS-6series ideal for applications where high precision is required. The sensors are available in different sizes and payloads to fit your needs.

  • Green Check Icon
    Reliable

The robust design of the NRS-6 sensors ensure a reliable operation of your application and the IP67 certified housing makes it suitable for any harsh environment.

  • Green Check Icon
    Accurate & repeatable

The sensors’ minimal deformation when being exposed to external forces makes the NRS-6 series idealfor applications where high precision and repeatability is required.

  • Green Check Icon
    Easy to setup & use

The available URCap and example code supports you through the deployment of your application using force torque data.

NRS-6, FT-Sensor

UR+ Certified

Expand the capabilities of your Universal Robot and perform high demanding force sensitive tasks with the NRS-6 Force Torque Sensor Kit for Universal Robots.

The sensor is delivered with everything needed for quick installation – a true plug & play solution for all UR robots (cb & e-series).

What is in the kit:
- NRS-6 Sensor
- Mounting flanges
- NRC-ETH - Ethernet converter
- Power & sensor cable
- URCap

NRS-6 Series

We offer a series of force torque sensors compatible with all robot manufacturer. They ensure both accuracy and repeatability in your application.

Three key benefits of a force torque sensor can be defined as accuracy, resolution, and repeatability. Accuracy refers to how precise the sensor is when a certain force is selected and applied. Resolution refers to the smallest change in force that the sensor can measure. Repeatability is the sensors ability to provide the same results. By achieving these three aspects the force torque sensor will result in fewer damaged products, fewer defect products and less waste due to inadequate work.

The NRS-6 range of high-quality multi-axis force torque sensors are durable with a robust design. All NRS-6 products are equipped with an IP67 certified housing suitable for harsh environments in any application setting. The sensors are ideal for tasks such as grinding, polishing, weighing and velocity adjustment based on payload.

  • Green Check Icon
    IP67 Certified (Dust And Waterproof)
  • Green Check Icon
    Robust design with high stiffness
  • Green Check Icon
    High resolution
  • Green Check Icon
    Low signal noise
  • Green Check Icon
    Minimal deformation
  • Green Check Icon
    50 or 200 kg payload options
  • Green Check Icon
    50 or 80 mm sensor diameter options
  • Green Check Icon
    CAN bus communication (standard)
  • Green Check Icon
    Ethernet TCP/IP & analog outputs (optional)
  • Green Check Icon
    Webserver available on the NRC-ETH/DAC

The ideal choice for high-precision applications

The Nordbo Robotics 6-axis force torque sensor is rigid, robust and ideal for mounting on robots for precise force control. The sensors’ minimal deformation when being exposed to forces makes the NRS-6 series ideal for applications such as grinding, polishing, buffing, and deburring where high tool precision is required.

A force torque sensor measures the force applied to an object. To measure the force, it is important to consider the required and desired measuring range and accuracy to evaluate which force torque sensor is most suited for a given task. The more precise the values needs, the smaller the measuring range and the more receptive the sensors needs to be.

The force torque sensor can be used in a variety of applications. The main ones are assembly of objects and finishing tasks such as grinding and polishing as these activities require precision and repeatability. For certain tasks, the force applied needs to be accurate and consistent. This makes the force torque sensor applicable to a wide range of applications.

NRS-6050-D50

General purpose sensor, max. 50kg payload, Ø50mm. CAN standard or optional NRC-ETH.

Datasheet

NRS-6050-D80

General purpose sensor, max. 50kg payload, Ø80mm. CAN (standard) or ETH (optional).

Datasheet

NRS-6050-D80-UR

UR sensor bundle, max. 50kg payload, incl. NRC-ETH, mounting flanges & URCap.

Datasheet

NRS-6200-D80

General purpose sensor, max. 200kg payload, Ø80mm. CAN (standard) or ETH (optional).

Datasheet

NRS-6200-D80-UR

UR sensor bundle, max. 200kg payload, incl. NRC-ETH, mounting flanges & URCap.

Datasheet

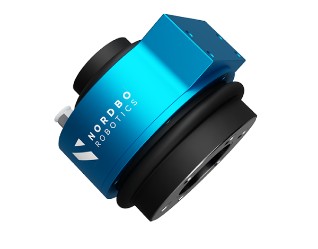

NFS-D Flexible Spindle mount

Flexible Spindle Mount

The NFS series ensure rotational and angular compensation for for your spindle while processing. It is well suited in demanding applications such as deburring and flash removal.The pneumatically controlled force compensation allows the spindle to overcome challenges related to tolerances, misplacement of parts, and surface irregularities.

  • Green Check Icon
    Consistent quality output

By supplying a constant air pressure,the flexible spindle mount enables a consistent quality output when automating processes using a spindle.

  • Green Check Icon
    Reduced waste

The rotational and angular compensation protects the spindle and workpiece from unnecessary damage and prevent unnecessary waste.

  • Green Check Icon
    Easy to use

The rotational and angular compensation of the spindle makes it easier to program the robot path and overcomes challenges related to misalignment.

NFS-D Series

We offer a series of flexible spindle mounts compatible with multiple spindle manufacturers. The NFS-D series ensure rotational and angular compensation for the perfect fit for your spindle.

NFS-D is a robust flexible spindle mount well suited in demanding applications such as deburring and flash removal. The pneumatically controlled force compensation allows the spindle to overcome challenges related to tolerances, misplacement of parts, and surface irregularities. By supplying a constant air pressure to the spindle, the flexible spindle mount enables consistent quality when automating processes using spindles.

Key features

The NFS-D series of flexible spindle mounts are equipped with features that makes them suitable for a wide variety of applications.

  • Green Check Icon
    Axial compliance of 5mm
  • Green Check Icon
    Radial compliance of 5° in 360° orientation
  • Green Check Icon
    Spindle clamp screws accessible on top
  • Green Check Icon
    Mounting plate at side of the product
  • Green Check Icon
    Floating force regulated by external air regulator
  • Green Check Icon
    Max. air pressure 7 bar
  • Green Check Icon
    Standard spindle sizes: Ø30, Ø40, Ø80
  • Green Check Icon
    Customized sizes up to Ø80 on request

NFS-D30

Flexible Spindle Mount for spindles with a diameter of Ø30mm.

NFS-D30-AQC

Flexible Spindle Mount, incl. mounting flange for Nakanishi NR3060-AQC.

NFS-D40

Flexible Spindle Mount for spindles with a diameter of Ø40mm.

NFS-D40-AQC

Flexible Spindle Mount, incl. mounting flange for Nakanishi NR4040-AQC.

NFS-D80

Flexible Spindle Mount for spindles with a diameter of Ø80mm.

Application examples

Deburring with Mimic

Deburring of casted car engine

nrv-d 3d camera

3D Camera

The NRV-D 3D camera is an industrial graded camera for your robot applications.

The camera is used in Nordbos' application bundles and it is based on the acclaimed Real-Sense technology. The casing is new and improved and has an active lens cleaning option along with a strong sealing that protects the electronics from dust and water.

  • Green Check Icon
    Pick & Place

Detect packages and their orientation within the robot workspace using 3D vision technology

  • Green Check Icon
    3D-based path planning

Generate a 3D model of the scanned surface and automate the path planning

  • Green Check Icon
    Customize solutions

Develop your own innovative solutions and automate complex applications

Industrial Depth Camera

The Nordbo Industrial Depth Camera D435e is built with Intel® RealSense™ technology which is widely used and supported. The depth camera has a standard USB3 interface with built-in power connectors and features a wide field of view for depth and RGB sensors. In addition, the water- and dust resistant housing is optimized for industrial environments.

This camera is ideal for OEMs and integrators who need both 3D and 2D vision in their products and applications.

The Nordbo Industrial Depth Camera D435e is compatible with the Cross-platform SDK for Intel® RealSense™ devices, enabling multiple programming languages, wrappers, sample code and tools. This camera can be used with the Nordbo CraftMate Platform to acquire 3D data of the workpiece to be processed.

Lens-cleaning bracket

It is also optional to purchase a self-cleaning bracket for mounting the camera. The bracket has built-in air nozzles. They provide a constant air circulation around the camera lens in order to prevent dust or water to bloke the field of view. This option is ideally for the applications in a harsh industrial environment with high dust or humidity rate, for example grinding, sanding, painting, etc.

Application examples

Large surface sanding (car repair and finishing)

Weld seam removal
