Standard ATEX Cell for Spraying
A standard ATEX robot cell for paint and powder, pre-engineered and proven in production. It fits into the booth you already have, and your painter teaches it by painting.
The Spraying Cell
A pre-engineered ATEX cell that fits into your existing booth. The certified cobot slides aside for manual painting and teaching, then slides in to repeat the job, for paint and powder alike.
Included:
- ATEX cobot
A Universal Robots UR12 in a pressurised enclosure, certified for ATEX Zone 2 and Zone 22. - Mimic
Teach by demonstration. Your painter paints the part, and the robot repeats it. - Slider and pedestal
Parks the robot for teaching or manual painting, and slides it in for production. - Spraying equipment
Compatible with third party tooling, including communication.
Delivered as one configuration.
Footprint: 2305 × 1040 × 2110 mm (L × W × H)
SHARED WORKSPACE
The robot shares the booth with your painter
Slide the robot aside and the painter has the booth to teach - or to paint by hand. Slide it in and the robot takes over.

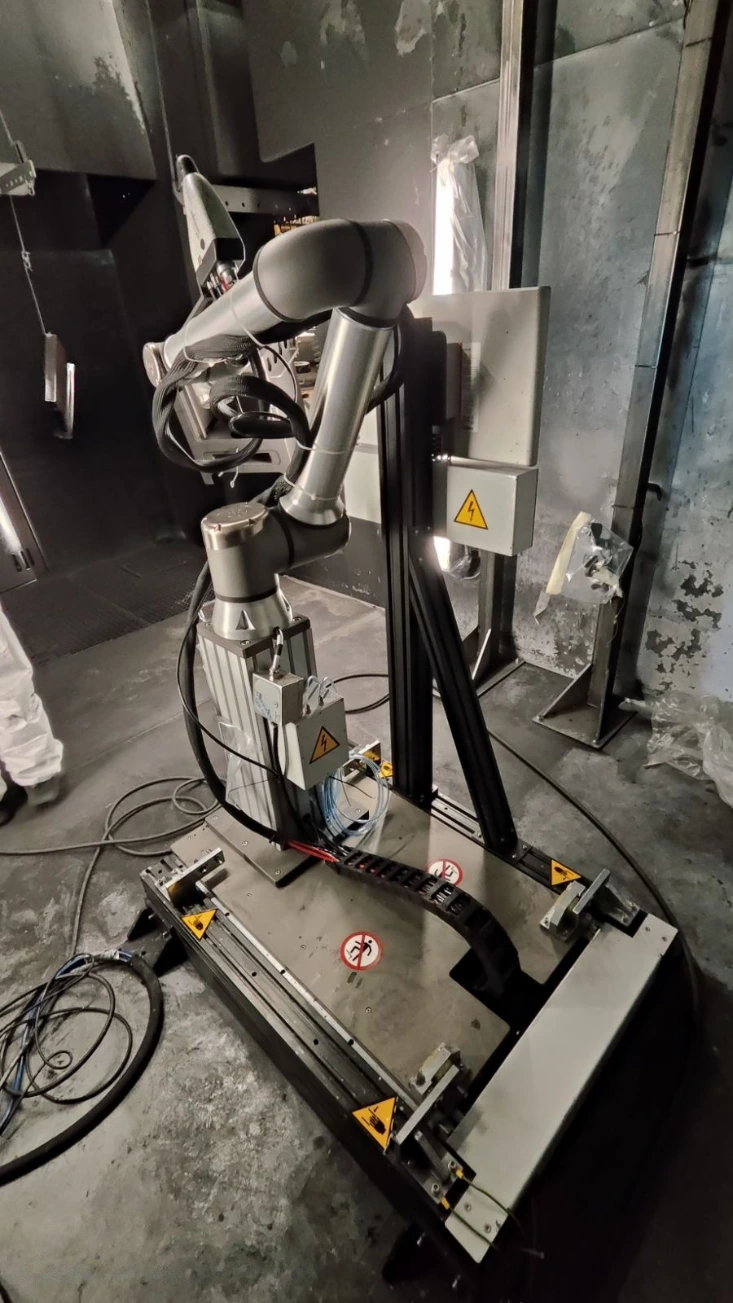

Robot parked. Base closed.
Robot out. Base extended.
SPECIFICATIONS
Certified for the spraying booth environment
Zone 2 and Zone 22
Build on:
- A Universal Robots UR12 with a pressurised enclosure (Ex pzc)
- Purge controller monitors internal pressure and cuts power if it drops
- Rated for the highest groups, IIC gas and IIIC dust — wet paint and powder

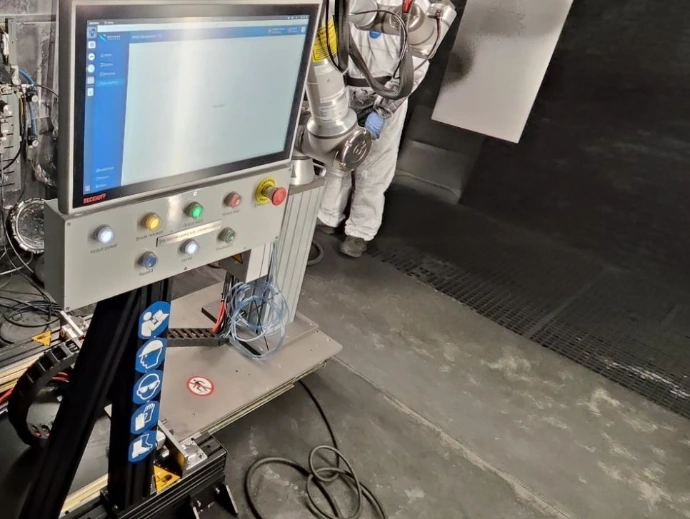

- ATEX-rated operator panel and control components in the booth
Mimic
Teach by painting.
Program on the fly.
Own the process of the machine with Nordbo Robotics' Mimic.
Create and run programs without stopping the production.
Start standard. Add flexibility when you need it.
STANDARD CELL
Ideal for newcomers. Essential features to kickstart sales and marketing. Perfect for small teams.
- Manual and automatic tool
- UR12 Ex ATEX cobot
- Mimic with tracking kit
- ATEX-rated operator panel
- Installation, safety validation, CE and training
- FAT and SAT on your own workpieces
+ MIMIC ADJUST
Ideal for newcomers. Essential features to kickstart sales and marketing. Perfect for small teams.
- 3D vision station ahead of the booth
- Part recognition and pose estimation
- PLC integration with conveyor tracking
- Automatic program choice and path correction
